Essential Info

Power Supply: 220–240V ~ 50Hz, 1 Ph.
Indoor Dimensions (W×D×H): 805 × 194 × 285 mm.

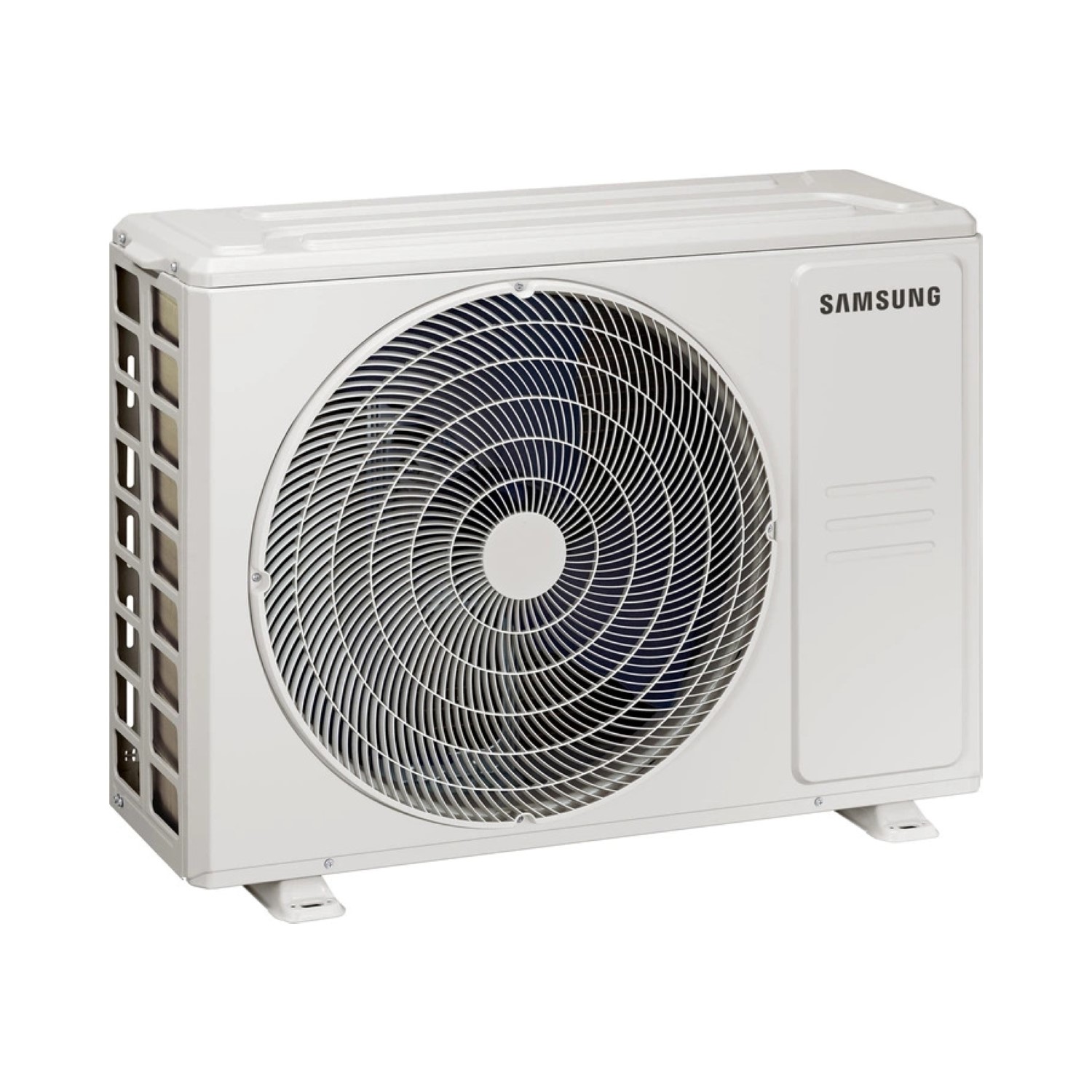

Outdoor Dimensions (W×D×H): 720 × 270 × 495 mm.
Indoor Net Weight: 8.1 kg.
Outdoor Net Weight: 23.2 kg.
Combined Net Weight: 31.3 kg.
Packages: 2 (Indoor + Outdoor).

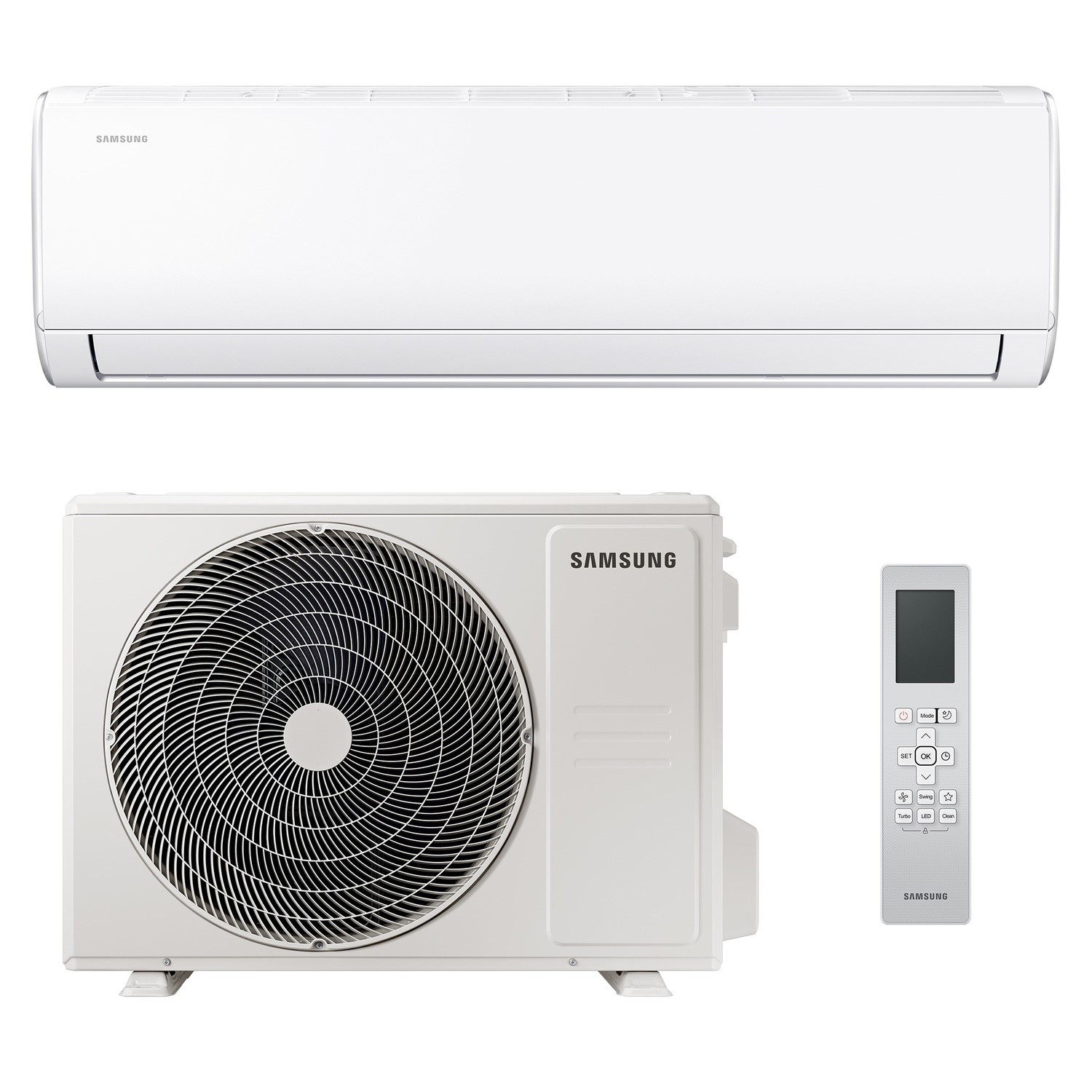

Supplied With: Indoor unit, outdoor unit, remote control and indoor mounting plate.

Key Features

Digital Inverter technology.
Cooling, heating, dehumidifying and air purifying modes.
Built-in SmartThings Wi-Fi control with Alexa, Google Assistant and Bixby voice assistant support.
High-efficiency R32 heat pump.
Auto Clean function.
Good Sleep mode.
Fast Cooling function.
24-hour programmable timer.
Ultra-quiet operation with indoor sound levels from just 20dB(A).
Auto Restart and self-diagnostic functions.
2-Way Auto Swing airflow.
Digital LED temperature and function display.

Installation & F-Gas

This air conditioning system must be installed and commissioned by an F-Gas certified engineer. The outdoor unit is factory pre-charged with R32 refrigerant, while the indoor unit and connecting pipework must be vacuumed and commissioned on site before the refrigerant charge is released. As R32 refrigerant is covered by F-Gas regulations, installation, servicing and handling must only be carried out by appropriately qualified professionals. For further guidance, please visit the official UK Government F-Gas certification information.

Key Information
Brand	Samsung
Type	Wall mounted
Split Type Multi split air cons connect a number of indoor units to one outdoor unit, to cool more than one room while saving space and running costs. Single room split air con units have one indoor unit connected to an outdoor system. Air cons with no outdoor unit are vented straight through the wall, making them perfect for anywhere outdoor space is difficult to access.	Split
Maximum Cooling Area	35sqm
Cooling Power (BTU) The maximum cooling power of your air con in British Thermal Units. The greater the BTU, the larger the space the unit can cool.	12000
Refrigeration Gas R290 is an energy-efficient refrigerant, an eco-friendly alternative with zero ozone depletion potential (ODP). R290 does also not require installation by an F-Gas certified engineer, whereas R32 requires installation by an F-Gas certified engineer.	R32
Power Supply (V/hz)	220240V ~ 50Hz, 1 Ph
Energy Rating	A++/A
Noise Level (Sound Pressure) How loud your air con is. A normal conversation is about 60dB. Sound Pressure is what your ears actually hear. Think of it like the brightness of the light hitting a specific surface.	20dB (A)
Colour	White
Condition	New
Power
Power Input (Cooling)	1.11kW
Features
Heating Function Heat pump for efficient heating, perfect for year round use
Quiet
Dehumidifies Removes moisture from the air in your home, for a more comfortable humidity level. Reduces mould and mildew.
Dimensions & Weight
Max. Hose Length	25Metres
Weight	23.2kg
Height	50cm
Width	72cm
Depth	27cm
