Product InformationThis bundle includes :

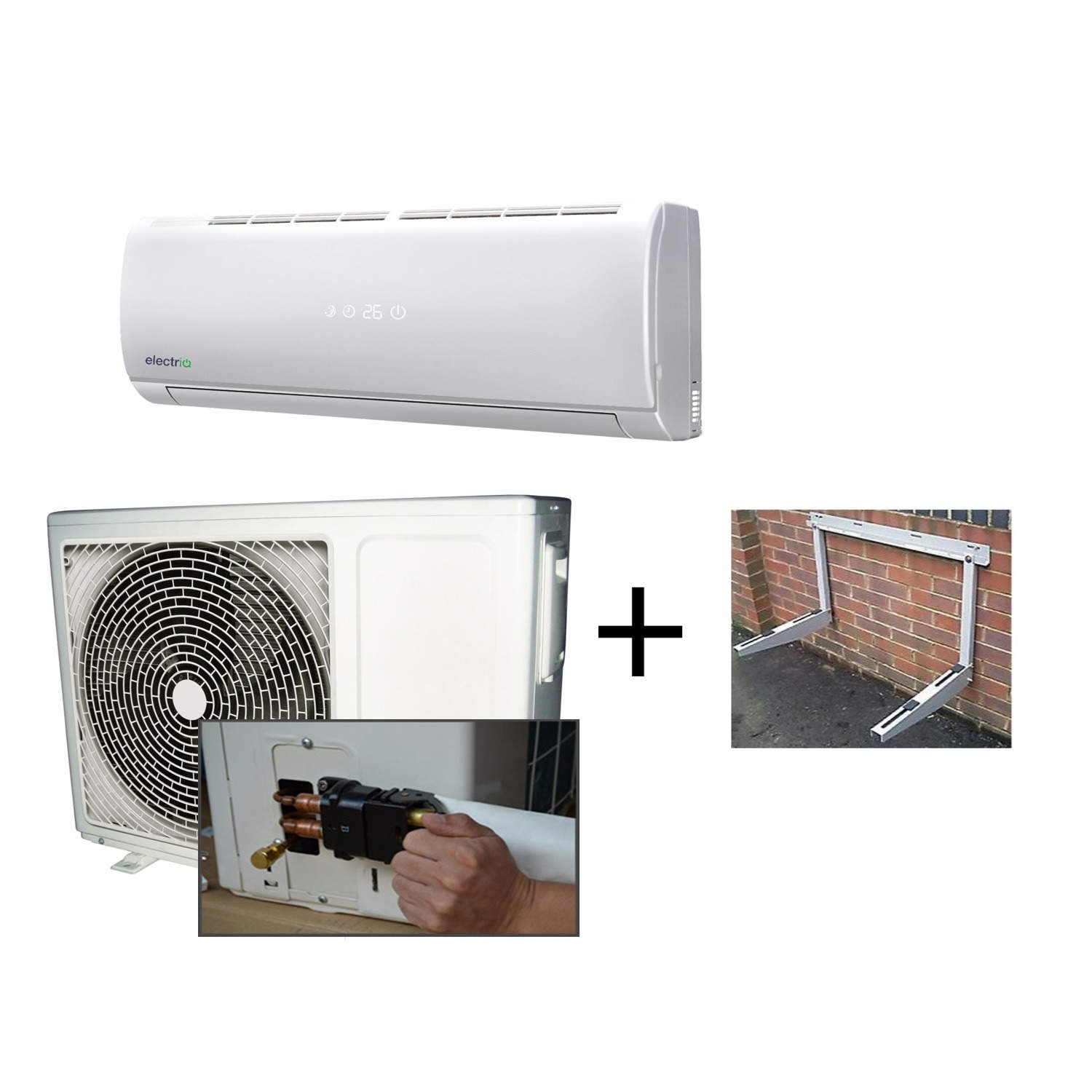

electriQ 12000 BTU Panasonic Powered Quick Connector Smart Wall Mounted Split Air Conditioner Heat Pump 4 mete
1 x Air Conditioning Condenser Wall Mounting Brackets up to 90 kgs. 9000 to 24000 BTU
Enjoy maximum air conditioning performance with minimum fuss with this quick connector wall-split Inverter Air Conditioner from electriQ. This unit features a unique quick connector that allows the qualified fitter to install it fast without the need for any specialised tools. The quick connector is so simple to fit by the engineer - the interior unit can be connected to the exterior sealed units by pushing in the connectors with ease in just two clicks.
This cost-effective, energy efficient unit is powerful enough to cool or heat rooms up to 30sqm, yet so quiet, you will forget it's even there. The built-in dehumidifier function helps remove excess moisture and improve the air that you breathe. To suit your needs and budget, electriQ split air conditioners are available in a choice of 3 different models - eIQ-12WMINV, eIQ-12WMINVQC (now with quick connector) and eIQ-18WMINV. All the electriQ Wall Split Inverter air conditioners come with a massive 5 year warranty and have an impressive energy efficiency rating of A+ for cooling and A for heating, giving you total peace of mind. This air conditioner features the very latest Inverter technology that will reduce or increase the compressor speed according to fluctuation in temperature dependent on your required heating and cooling levels, thus saving you between 30%-50% on your energy bill when compared with a non-inverter equivalent which has fixed compressor speed.
- Outputs 12000 Btu/h (variable speed inverter)
- A+/A Rating 2017 ERP
- Super DC Inverter with Panasonic compressor
- Cooling, Heating & Dehumidifying
- electriQ Quick connector system supplied with 4 meters pipes and cable kit as standard
- Energy Saving Inverter Technology
- Heat Pump for efficient heating
- Ultra Quiet Operation
- Digital White Led temperature and function display
- Cooling capacity: 1.6-3.8 kW
- Heating capacity: 2.0-4.2 kW
- SCOP: 3.8 / SEER: 5.6
- 5 years warranty*
- 24 Hour Timer
- Self diagnostic function
- Sleep Mode
- Auto Restart
- Low Energy Standby (0.5 W)
What's in the box?

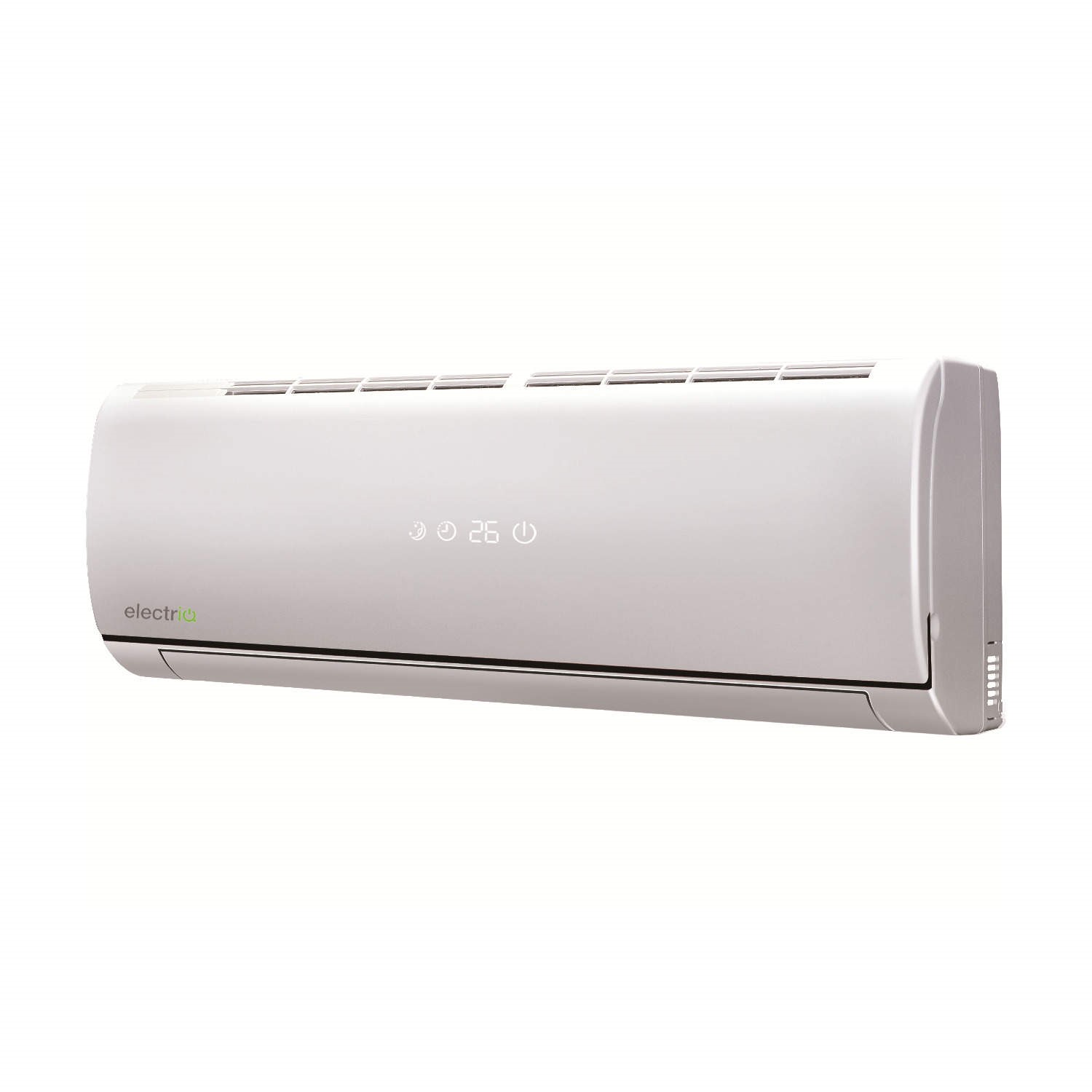

The eIQ-12WMINVQC Quick Connector DC Inverter is comprised of two main units. There is the internal unit which is mounted on the wall of the room you wish to cool supplied with an indoor wall bracket, and then the corresponding external unit (called the condenser) which sits on the ground or on a wall bracket (can be supplied separately if required ) on the outside. A 4 metre coil of interconnecting copper pipe, electrical cable and a remote control also comes in the box.
Easiest Installation on the market! (Click for video)

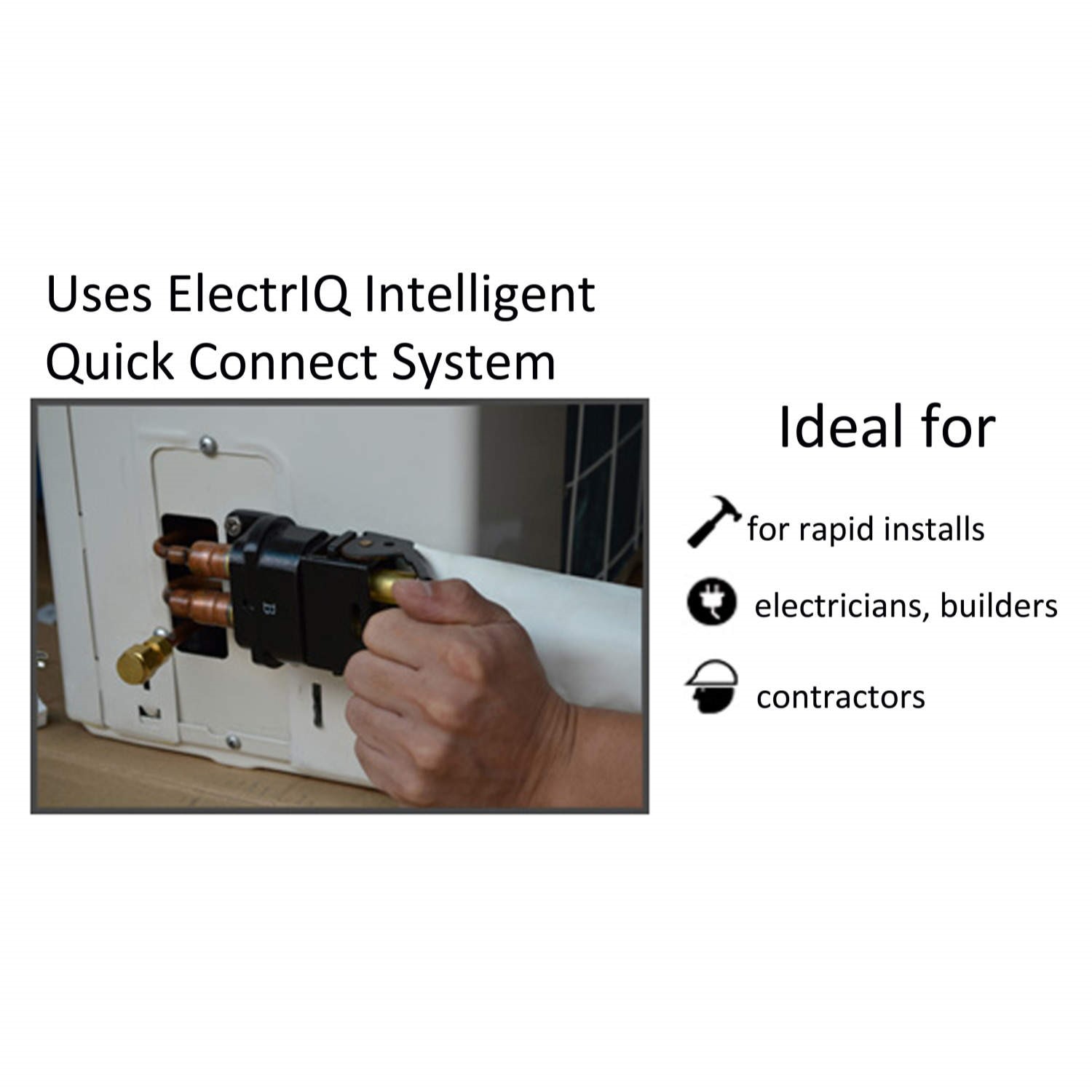

Installation is quick and easy and ideal for the qualified person who needs to perform a quick install. The units are pre-gassed in a sealed system and they come with a quick connector. The indoor unit should be fitted to the wall using the wall-mounting plate supplied in the box. The condenser is to be placed on the ground or wall mount at the other side of the wall with the optional wall mounting bracket. Connect the 4 metre copper piping that is pre-attached and sealed to the indoor unit to the specially designed electriQ quick connector on the outdoor unit. This is very quick to achieve as demonstrated in our (YouTube clip). The interconnecting electrical cable is also fitted with a specially designed connector for fast and easy connection. The unit must be installed by a F-Gas qualified AC engineer, please ensure the qualified fitter reads the user manual in full before attempting install. The speed at which this unit can be fitted means that installers can improve productivity and increase the number of jobs they can do in a day.
How does it work?
The outside unit takes the heat from the room, along with any condensation that may have built up in the system, and dissipates it outside. The eIQ-12WMINVQC's internal unit sets the room cooling and heating temperature to your exact requirements. You can use the supplied remote control to set your desired temperature and then let the air conditioner automatically regulate the heat throughout the day at a maintained level, without having to change settings yourself. Many of our customers are now installing these super inverter air conditioners for their impressive heating ability as well the cooling.
*These units contain a gas governed by F-Gas regulations. The gas must be handled by qualified F-Gas personnel. 2 year warranty is subject to commissioning by qualified F-Gas engineers. 5 years extended parts warranty is subject to annual service.
