Enjoy unrivalled performance with our latest range of ElectriQ inverter wall-mounted Air Conditioners. This cost-effective, energy-efficient unit will economically cool or heat rooms up to 60sqm in size. It has the added advantage of being exceptionally quiet so you will forget it is even there. The unit also features a built-in dehumidifier function to remove excess moisture which further helps improve the air you breathe.
To suit your needs and budget, ElectriQ split air conditioners are available in a choice of 5 different models - eIQ-12WMINV, eIQ-12WMINVQC (now with quick connector), eIQ-18WMINV and eIQ-24WMINV. All the ElectriQ Wall Split Inverter air conditioners come with an impressive 5 year warranty and have a minimum energy efficiency rating of A+ for cooling and A for heating. This air conditioner features the very latest Inverter technology that will reduce or increase the compressor speed according to fluctuation in temperature dependent on your required heating and cooling levels, thus saving you between 30%-50% on your energy bill when compared with a non-inverter equivalent which hax fixed compressor speed.
eIQ-24WMINV is the most powerful of the range at 24,000 BTU while still being energy efficient and stylish.
- Outputs 24,000 Btu/h (variable speed inverter)
- A+/A+ Rating 2017 ERP
- Super DC Inverter with Panasonic compressor
- Cooling, Heating & Dehumidifying
- Easy Fit with 5 meters pipe and cable kit supplied as standard (optional 10 meter pipe kit available)
- Energy Saving Inverter Technology
- Heat Pump for efficient heating
- Ultra Quiet Operation
- Digital White Led temperature and function display
- Cooling capacity: 4-8.4 kW
- Heating capacity: 4-9 kW
- SCOP: 4 / SEER: 5.6 (A+/A+)
- 5 years warranty*
- 24 Hour Timer
- Self-diagnostic function
- Sleep Mode
- Auto Restart
- Low Energy Standby (0.5 W)
- L x W x H: 1080 x 302 x 220mm (indoor)
- L x W x H: 900 x 330 x 835mm (outdoor)
- Weight: 16Kg (indoor)
- Weight: 65Kg (outdoor)
Whats in the box?

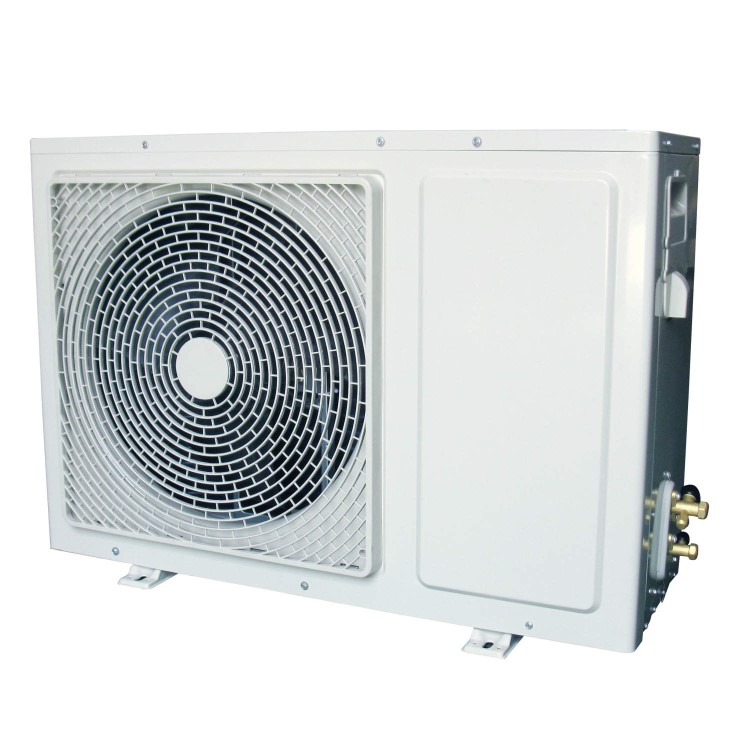

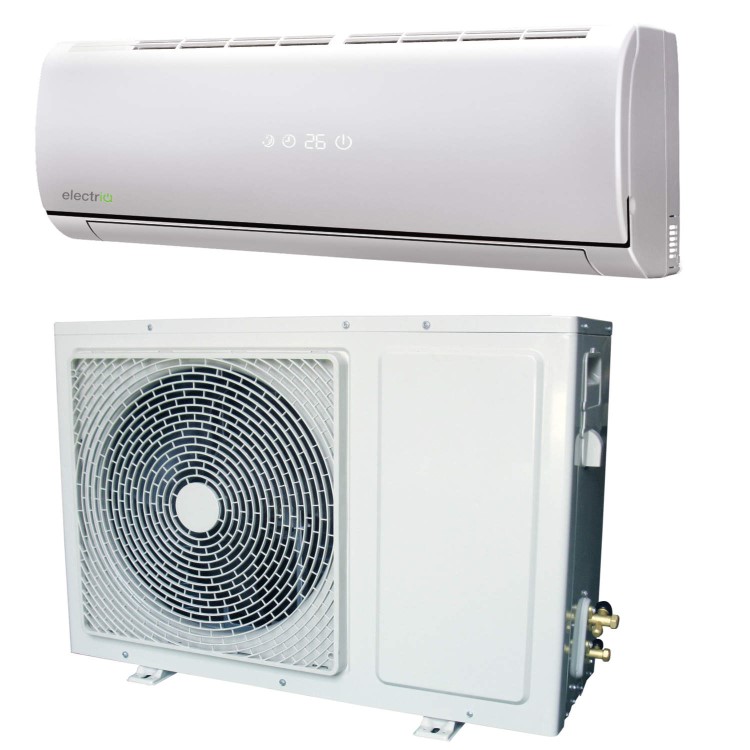

The eIQ-24WMINV is an easy Install DC Inverter and is comprised of two main units. There is the internal unit which is mounted on the wall of the room you wish to cool supplied with an indoor wall bracket, and then the corresponding external unit (called the condenser) which sits on the ground or on a wall bracket (can be purchased separately if required ) on the outside. Also in the box is a 5 metre coil of interconnecting copper pipe, electrical cable and a remote control.
How to Install
Our units are designed to reduce the installation time. The indoor and outdoor units are pre-gased and sealed and they come with a pre-flared pipekit enabling the qualified fitter to easily install them. The indoor unit should be fitted to the wall using mounting plate supplied in the box. The condenser should be fixed on the ground or wall mounted on the outside of the wall with the optional wall-mounting bracket. The unit is supplied with a 5 metre copper pipe that will reduce the need to purchase additional parts. It is also supplied with electrical cable. The unit must be installed by a F-Gas qualified AC engineer. Please ensure the qualified fitter reads the user manual in full before installing.
How does it work?
The outside unit takes the heat from the room, along with any condensation that may have built up in the system, and dissipates it outside. The eIQ-24WMINVs internal unit sets the room cooling and heating temperature to your exact requirements. You can use the supplied remote control to set your desired temperature and then let the air conditioner automatically regulate the heat throughout the day at a maintained level, without having to change settings yourself. Many of our customers are now installing these super inverter air conditioners for their impressive heating ability as well the cooling.
*These units contain a gas governed by F-Gas regulations. The gas must be handled by qualified F-Gas personnel. 2 year warranty is subject to commissioning by qualified F-Gas engineers. 5 years extended parts warranty is subject to annual service.
What is a BTU?
1 BTU is the amount of heat required to raise the temperature of one pound of liquid water by one degree from 60° to 61° Fahrenheit at a constant pressure of one atmosphere. As a general rule we advise you to buy an Air Conditioner with a minimum 3,000BTUs as this is the minimum required to cool a small room (10sq/m) on a hot day. Medium rooms (24sq/m) need around 10,000BTUs and larger rooms and office spaces (36sq/m) require around 15,000BTUs.
