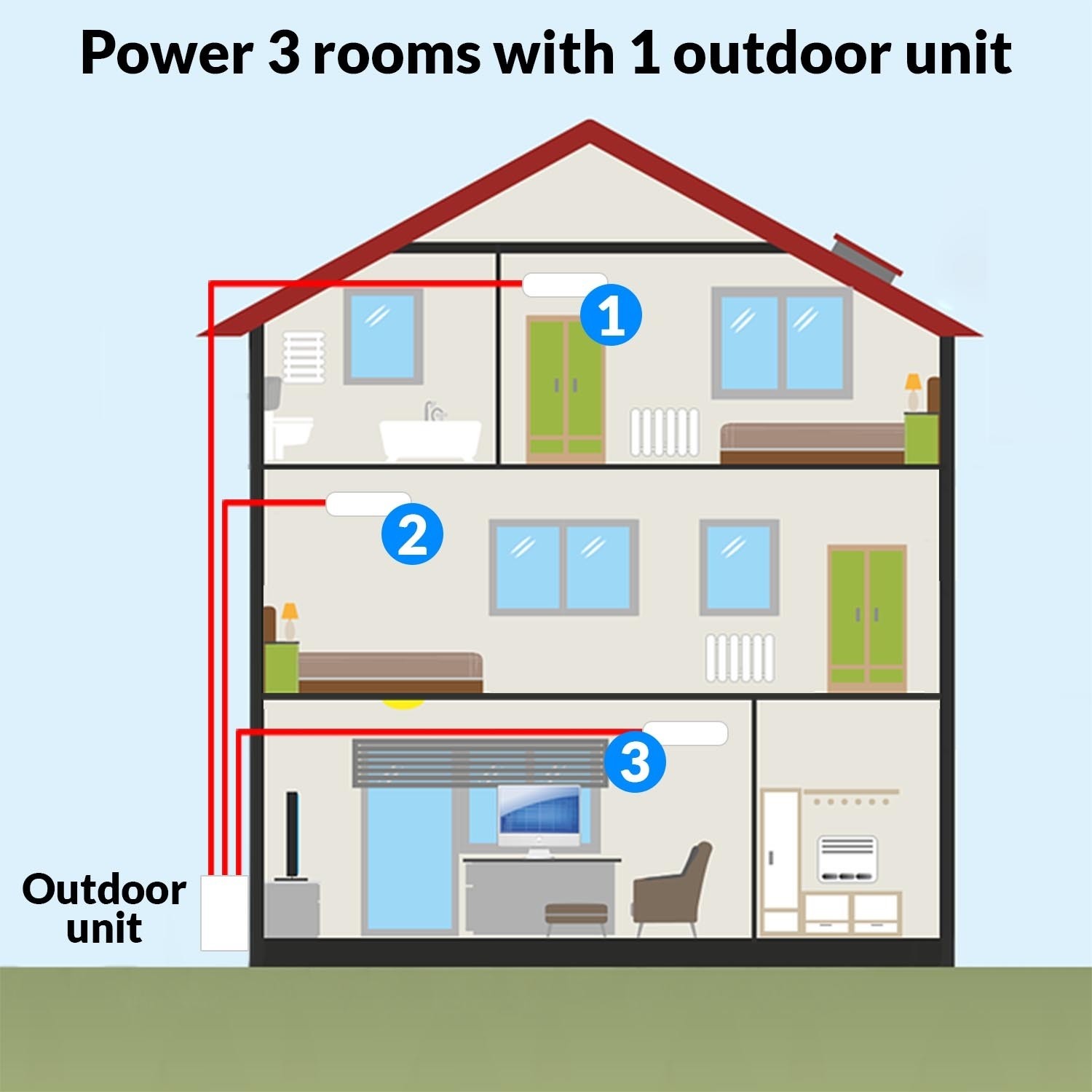

Unlike conventional split air conditioners that require a separate outdoor compressor unit for every room, this advanced multi-split air conditioner system is designed to power three rooms from a single compressor. This not only improves both outdoor space and external aesthetics, it also saves on expensive installation and running costs too. Plus, each indoor unit has its own remote control, allowing for individual control of both air conditioning units.
The stylish unit is an air conditioner for all seasons. It features both a heating and cooling mode to help you remain toasty in the winter, and cool in the summer. Plus, there's even a built-in dehumidifier which helps remove excess moisture from the air to create a healthier environment, and is great for drying your damp laundry indoors when it's raining out. The electriQ multi split Air Conditioning System comes with an impressive 5 year warranty.
This cost-effective, energy-efficient system will economically cool or heat rooms up to 65 sqm in size. It boasts the very latest Inverter technology that will reduce or increase the compressor speed according to fluctuation in temperature dependent on your required heating and cooling levels, thus saving you between 40%-60% on your energy bill when compared with a non-inverter equivalent which has fixed compressor speed. It also has the added advantage of being exceptionally quiet so you will forget it is even there.
The electriQ multi split Air Conditioning System comes with an impressive 5 year warranty.
- Controls the climate of 3 rooms from just a single outdoor unit
- Outputs 3x9,0000 Btu/h (variable speed inverter) cooling and heating
- A++/A+ Rating 2016 ERP
- Super DC Inverter with Panasonic compressor
- Cooling, Heating & Dehumidifying
- Easy Fit with 5 meters pipe and cable kit supplied as standard (optional 10 meter pipe kit available)
- Energy Saving Inverter Technology
- Heat Pump for efficient heating
- Ultra Quiet Operation
- Remote control for each indoor unit
- Digital White Led temperature and function display
- Cooling capacity (single unit): 1.2-3.8kW
- Heating capacity (single unit): 1.4-8.0 kW
- Cooling capacity (total 3 units): 3.0-8.5kW
- Heating capacity (total 3 units): 2.5-9.0 kW
- SCOP: 5.1 / SEER: 6.5
- 5 years warranty*
- 24 Hour Timer
- Self-diagnostic function
- Sleep Mode
- Auto Restart
- L x W x H: 780 x 276 x 202mm (per indoor unit/net)
- L x W x H: 930 x 367 x 295mm (per indoor unit/packing)
- L x W x H: 970 x 370 x 790mm (outdoor/net)
- L x W x H: 1120 x 485 x 890mm (outdoor/packing)
- Net/Gross Weight: 10/12Kg (per indoor unit)
- Net/Gross Weight: 66/69Kg (outdoor)
SEE THE FULL SPEC SHEET HERE
What's in the box?

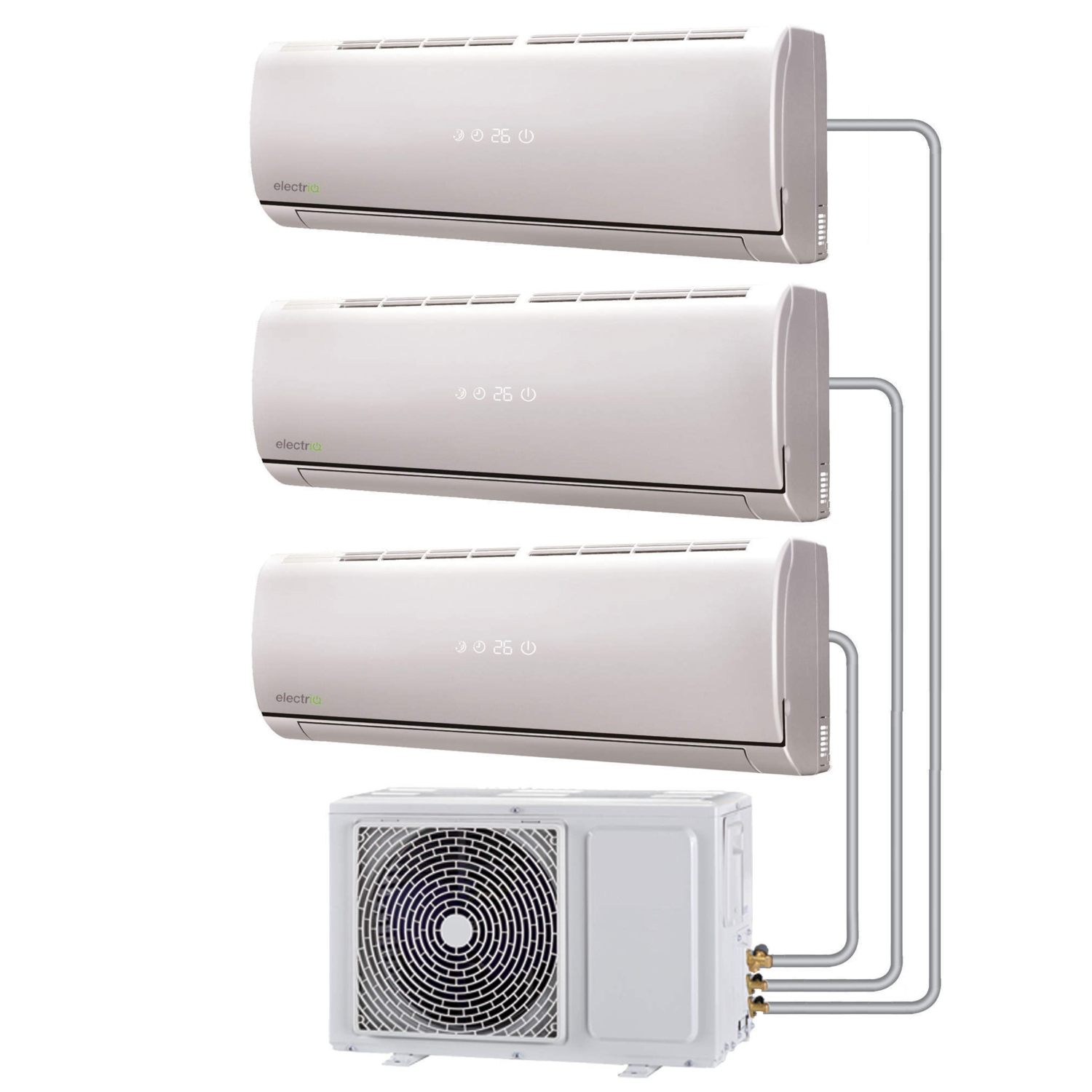

The eiq-3MS9K9K9K is an easy Install DC Inverter and is comprised of three main units (3 indoor units eiq-9wminv3MSIN & 1 outdoor unit eiq-3MSC2XWINSOUT) . There are three internal units which are mounted on the wall of the room/ rooms you wish to cool supplied with indoor wall brackets, and then the corresponding external unit (called the condenser) which sits on the ground or on a wall bracket (can be purchased separately if required ) on the outside. Also in the box is a 5 meter coil of interconnecting copper pipe, electrical cable and a remote control.
How to Install
Our units are designed to reduce the installation time. The indoor and outdoor units are pre-gased and sealed and they come with a pre-flared pipekit enabling the qualified fitter to easily install them. The indoor units should be fitted to the wall using mounting plate supplied in the box. The condenser should be fixed on the ground or wall mounted on the outside of the wall with the optional wall-mounting bracket. The unit is supplied with a 5 metre copper pipe that will reduce the need to purchase additional parts. It is also supplied with electrical cable. The unit must be installed by a F-Gas qualified AC engineer. Please ensure the qualified fitter reads the user manual in full before installing.
How does it work?
The outside unit takes the heat from the room, along with any condensation that may have built up in the system, and dissipates it outside. The eiq-9wminv3MSIN internal units set the room cooling and heating temperature to your exact requirements. You can use the supplied remote control to set your desired temperature and then let the air conditioner automatically regulate the heat throughout the day at a maintained level, without having to change settings yourself. Many of our customers are now installing these super inverter air conditioners for their impressive heating ability as well the cooling.
*These units contain a gas governed by F-Gas regulations. The gas must be handled by qualified F-Gas personnel. 2 year warranty is subject to commissioning by qualified F-Gas engineers. 5 years extended parts warranty is subject to annual service.
What is a BTU?
1 BTU is the amount of heat required to raise the temperature of one pound of liquid water by one degree from 60Â° to 61Â° Fahrenheit at a constant pressure of one atmosphere. As a general rule we advise you to buy an Air Conditioner with a minimum 3,000BTUs as this is the minimum required to cool a small room (10sq/m) on a hot day. Medium rooms (24sq/m) need around 10,000BTUs and larger rooms and office spaces (36sq/m) require around 15,000BTUs.
