48000 BTU 14kW A+/A+++ Super Slim Twin Ceiling Cassette with two 24000 BTU indoor units to a single outdoor unit - 5 years warranty TCS24

Quickfind: 796763 SKU: TCS24

Product Information

What stands out

  • Twin system, operate two indoor units with one outdoor unit
  • Suitable for large office spaces up to 47sqm
  • Cooling, Heating and Dehumidifying
  • A++/A+++ Energy efficiency rating to help you save money
  • The compact design takes little space for installation (24.5 Depth)

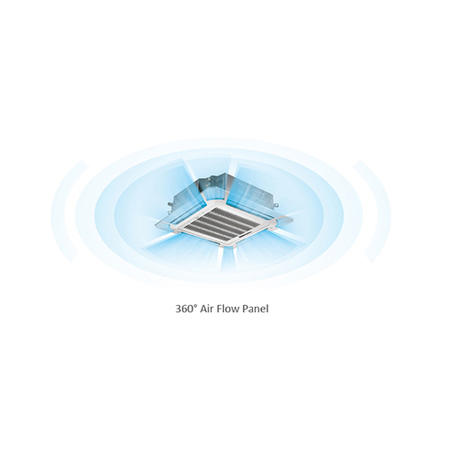

  • 360 degrees air flow delivers comforting air into every corner of the room
  • The unit is easy to clean and maintain due to its clever design
  • The super slim panel looks stylish and modern in your ceiling (5.5 Depth)

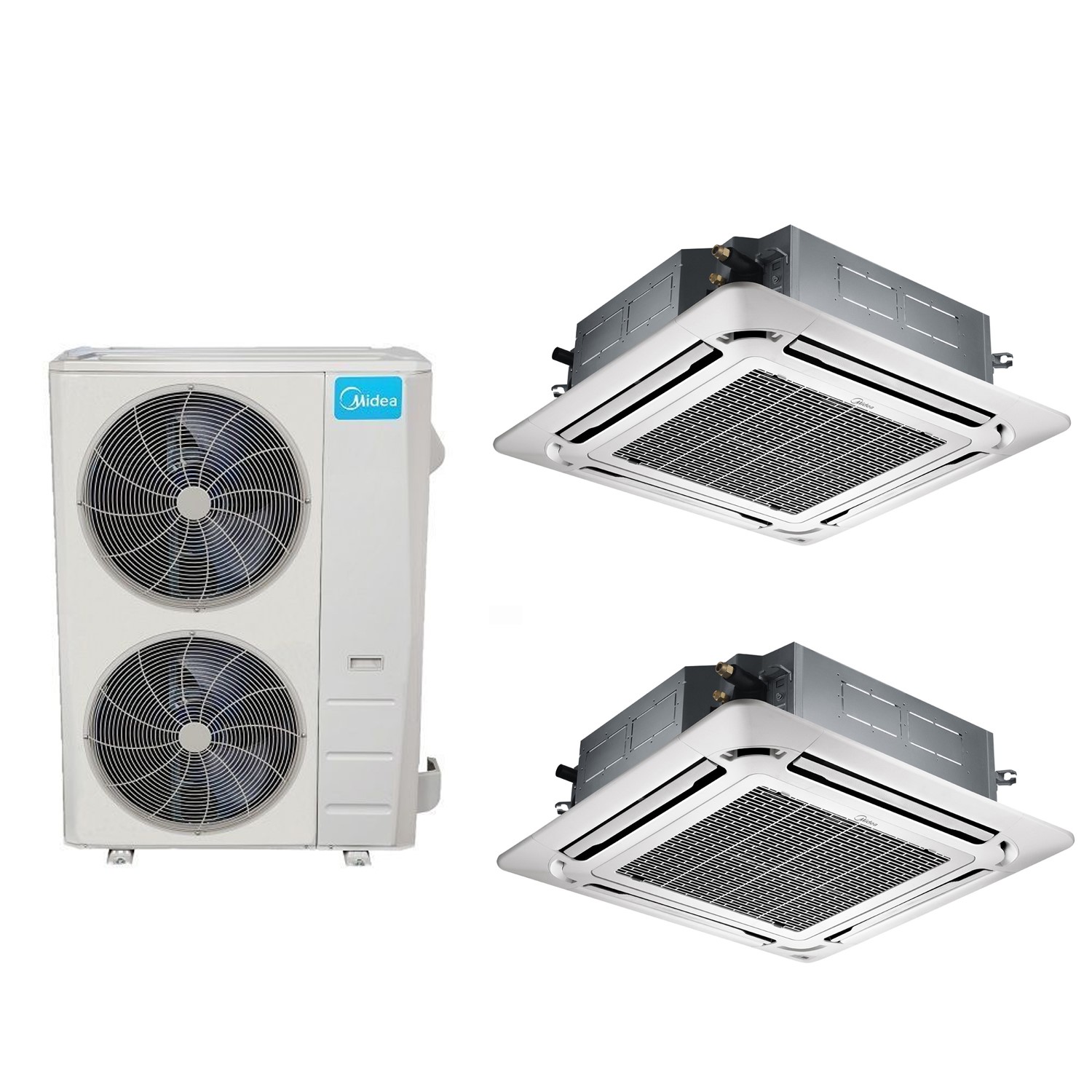

Your purchase comes with two indoor units and one outdoor unit. The two indoor units which are known as a twin system connect to the single outdoor unit.

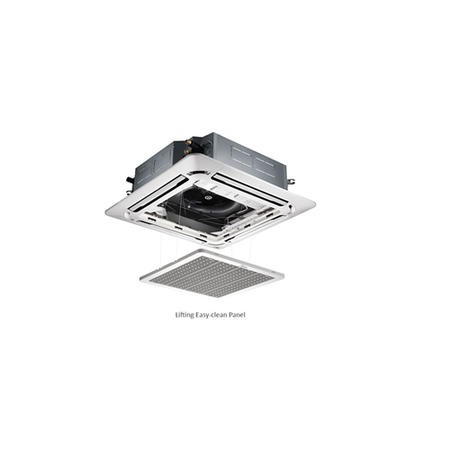

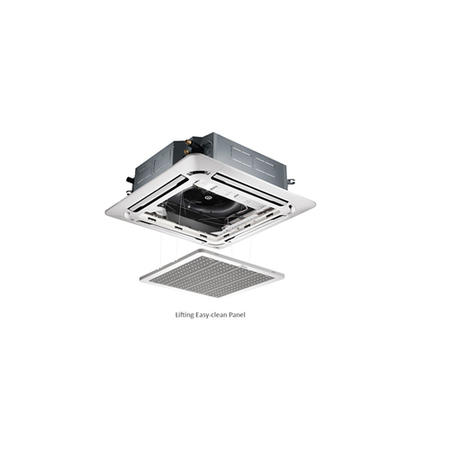

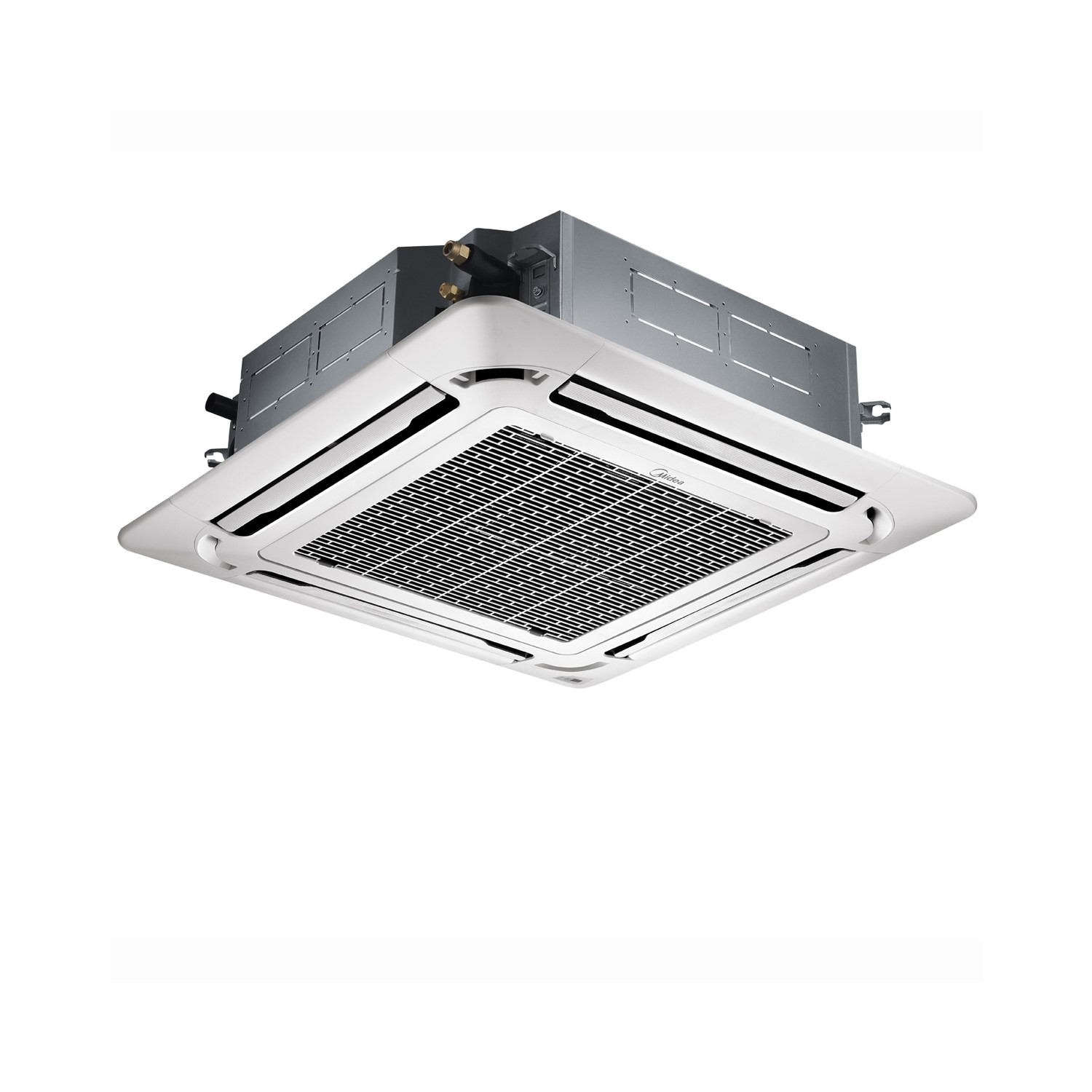

The new Midea cassette type inverter air conditioner features a 360 degree air flow panel with independent vane control to ensure that air is distributed to every corner of the room. The air conditioner is designed with a very low profile which makes it perfect for use in shallow ceilings where standard cassettes would be too deep. The removable lifting panel of the indoor unit can be lifted down for max 4 meters, making the clean process much easier. The air conditioner has high energy efficiency A++ for cooling mode and A+++ for heating mode.The Midea Super Slim Round Flow Cassette range of Air Conditioning Units is one of the most advanced on the market. The removable lifting panel makes the cleaning process much easier. The 360° flow system ensures efficient distribution of air into every corner of the room for better cooling. The TCS24 looks modern and takes little space in the ceiling.

Essential info

  • Net dimensions indoor (W x L x D):84 x 84 x 20.5 cm
  • Net dimensions outdoor (W x L x D): 84.5 x 36.3 x 70.2 cm
  • Weight (kg), Indoor: 24
  • Weight (kg), Outdoor: 49
  • Piping Size (mm), Liquid Ø mm (inch):9.5 (3/8”)
  • Piping Size (mm), Gas Ø mm (inch):15.9 (5/8’)
  • Maximum Piping Length (M): 50
  • Maximum Piping Height (M): 15
  • Applicable Area: 47sqm

Performance

  • Cooling Capacity: 24000 Btu/h
  • Cooling Capacity: 7.3kW
  • Heating Capacity: 24000 Btu/h
  • Heating Capacity: 7.3kW
  • Power Supply: Outdoor: 3 Phase 20A-380-415V/50Hz; Indoor:  13A-220-240V/50Hz
  • Energy Rating: A++/A+++
  • Air Flow Volume m3/h: 1100/1250/1450
  • SEER (Average): 6.10
  • SCOP: 4.0

Features

  • Refrigerant leak detector
  • Anti-cold air function
  • Emergency use function
  • Reserved on/off port
  • Error Alarm
  • Turbo mode
  • Built-in drain pump
  • Oscillating Louvers
  • Auto restart function
  • 5 years warranty

Tech stuff

Our units are designed to reduce the installation time. The indoor and outdoor units are pre-gassed and sealed. The condenser should be fixed on the ground or wall mounted on the outside of the wall, using the optional wall-mounting bracket. The unit must be installed by a F-Gas qualified AC engineer. Please ensure the qualified fitter reads the user manual in full before installing

These units contain a gas which is governed by F-Gas regulations. The gas must be handled by a qualified F-Gas personnel. 2 Year warranty is subject to commissioning by qualified F-Gas engineers. 5 Years extended parts warranty is subject to annual service.
