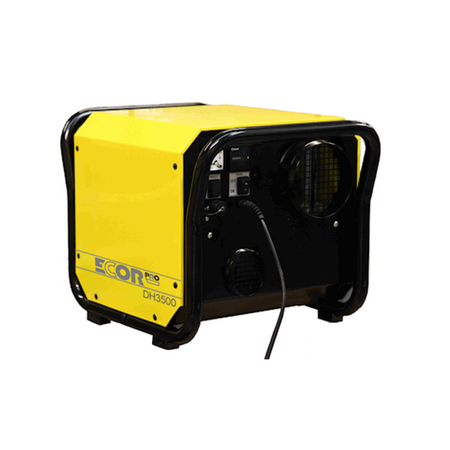

45 Litre Desiccant Industrial Dehumidifier (Equivalent to a 90 litre compressor dehumidifier)
Industrial dehumidifier DH3500 steel construction with tough epoxy paint finish. Used for:- Fresh water boats / Industrial Processes / Garages./ Hire Industry / Out Buildings / Flood Drying / Store Rooms. Very small for its 45 litre capacity. Will dry 247 and dry even down to temperatures of -20°C. Can work up to 35°C. Perfect for any climate.
Can be used in Sealed Storage Units in Museums, Banks, Military Applications, Offices, Server Rooms & Flood Drying as can be configured to dry pressure neutrally.
Steel Inside & Out Tough Enough Even for Hiring
Can be carried by one person and transported easily with the carrying handle. No water container to empty.
Instead the water is expelled via a 80mm air duct to the outside (standard size). Self regulating energy usage that adapts to air pressure differences using always the right amount of power to dry effectively
Designed in the UK as a unit fit for industrial drying. The DH3500 Ecor Pro 4 Hole desiccant dehumidifier and was even built for use in the hire industry.
Many configurations possible if installed. Input process air is dust filtered & dried. Input air can be ducted in with a 125mm duct (5″ inches). Wet exhaust air can be ducted out via a 80mm duct
Ecor Pro's research shows that the DH3500 will be four to seven times faster at drying buildings at low temperatures than a traditional compressor dehumidifiers
Highly Compact - Perhaps the smallest 45 Litre dehumidifier in the market.

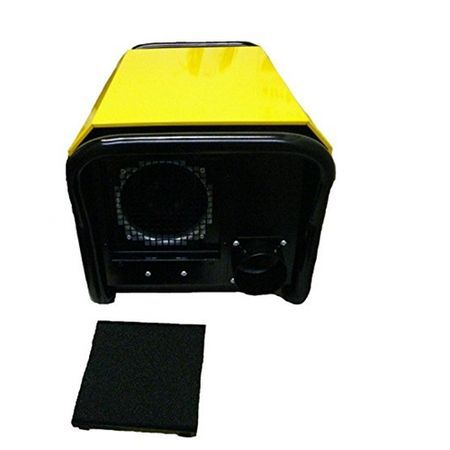

Dust Filter - The DH35100 desiccant industrial dehumidifier benefits from a simple reticulated dust filter in metal frame that can be shaken clean or easily replaced to prevent dust particles entering the unit and impeding performance.
Easy Repair - Maintenance and eventual repair have been thought through with an easy to remove cover that gives easy access to replace cord sets or warn parts by a qualified persons quickly. Prolonging the lifetime of the DH3500 dehumidifier. Cord sets can be replaced in around 20 minutes

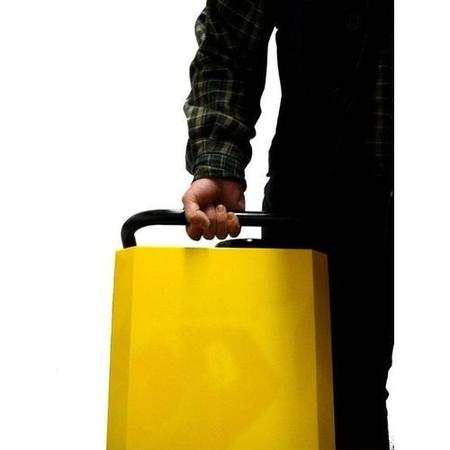

On Four Feet - Anti scratch plastic feet Carrying Handle - Easy to carry by one person. The handle can be removed if the product is being installed. The handles also protect the industrial dehumidifier duct flanges if in transit. Humidistat Connection - The DH3511 has no humidistat but one can be added very simply. A military standard connector is on the front of the DH3500. To this the remote humidistat EPHUM220 can be screwed in place to switch on / off the dehumidifier at the humidity you set.
Duct Air-In & Out - The DH3500 has all ducts fitted with flanges to allow ducting to be added with 125mm hard or flexible ducting.
Regen Air- In & Out - The DH3500 has a second fan compared to the DH2500 which has only one. Both do not produce water. The moisture is vented away allowing it to work in colder temperatures. The moisture is purged from the system by "Regen" air. This air can be drawn from outside the room being dried. Both wet air-out and the regen air-in can be ducted away with 80mm ducting either hard or flexible. "Four Hole System" - The system is classed as a "four hole" system due to the two inlets and two outlets. The advantage of a four hole system is that places can be dried pressure neutrally. The DH3500 can there for be used to dry large fridge freezer for instance. Power Supply - 220V supply 50Hz
Auto Reset - If there is an interruption to the power supply, the DH3500 will continue to operate as soon as the power has been returned. Perfect in locations where the there is a "dirty" power supply that can affect other electronically controlled products.
All Metal Construction - Mild steel metal construction covered in corrosion resistant epoxy paint backed on for added paint strength inside & outside.
Designed for longevity. 2 Meter Power Cord - no need to join cables when placed for instance in crawl spaces or lofts in the home for example.
Features
- Stainless steel case and internal structure
- Stainless steel carrying handle / duct protector
- Uses "4 hole" technology ideal for homes, offices, test chambers etc
- Low energy consumption in use for large extraction capacity
- Strong enough even for the hire industry or public spaces
- Very quiet for the large extraction
- Compact all metal construction
- Ideal for applications where drying is needed continuously
- Ideal for main use below 17°C
- Can be used to dry even at -20°CFoam pre filter
- Removable metal carrying handle on four feet
- Amp meter & Run hour meter
- On / Off controls
- Can be used with use remote humidistat – OPTIONAL
- Wet air-out / Regen ai-in ducted with 80mm diameter ducting – OPTIONAL
- Damp air-in / Dry air-out can be ducted with 125mm diameter ducting – OPTIONAL
Specification
- Power: 1500W
- Voltage: 220v
- Power: 6A
- IP Rating: IPX1
- Noise Level: 49 dB(A)
- Wall Mountable: Yes
- Temperature Range: -20 - 40°C
- Air Flow Process / Regen: 400/ 125 (m3/hr)
- Product Dimensions W X D X H (mm): Width: 352mm x Depth: 560mm x Height: 345mm
- Weight Net: 19.8Kg
- Weight Gross: 20.5Kg
