Industrial 32000 BTU 9.4 kw Portable Commercial Air Conditioner up to 80 sqm TC35

Quickfind: 908873 SKU: TC35

Product Information

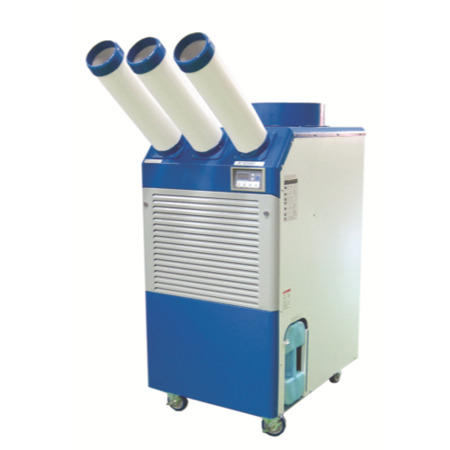

The unstoppable Typhoon TC35 MK3 is the latest  and the most powerful industrial air conditioner from ElectriQ. Raw cooling force in metal body the TC35 is great for commercial, industrial or military air conditioning operations.

Featuring 32000 BTU Air Conditioner of cooling power, this is mighty Air Conditioner is effective in rooms up to 200 sqm and has a condensate tank capacity of 20 L, with 4 kW power consumption. Featuring lockable castors for portability, this mobile Air Conditioner is a powerful model ideal for commercial or industrial  air conditioning applications. Great for computer rooms, industrial kitchens, hospitals, military applications, disaster relief, marine vessels, workshops, spot cooling, emergency cooling, sports rooms, factories, temporary offices, tents and hangers, temporary laboratories, special events and marquees. The TC35 provides spot cooling for large areas where cooling of the entire area is not feasible.

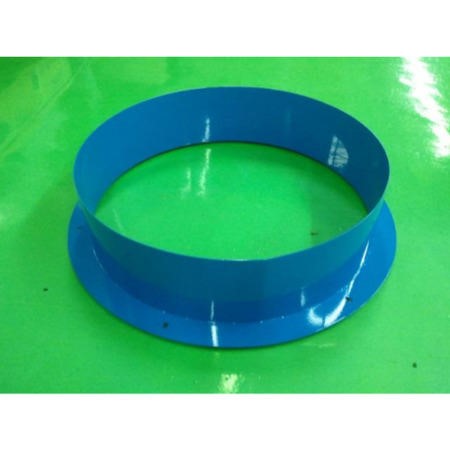

TC35 will operate with the greatest efficiency if it is situated outside the area to be cooled and the cold air ducted in using the three flexible hoses supplied as standard. Stand the TC35 on a firm, flat, level surface  and apply the brakes to the rear castors. For industrial spot cooling, no hot air ducting is required. If TC35 is being used to fully air-condition a space up to 200 sqm under the TC35 supplied thermostatic control, the warm air expelled by the fan on the top panel must be removed from the area being cooled. This portable air conditioning unit operates on 220V, 50 Hz, 20 Amp and is simple to set up as it is already assembled.  The chilled air is directed by three flexible hoses on the front of the unit enabling to cool several rooms. This makes the TC35 mobile air conditioner also great for spot cooling. The hot air extracted from the room is blown out the top of the unit and expelled up. If the unit is not sitted outside the space to be cooled  can be connected directly to 400mm ducting  via the included short cowl and can be ducted away up to 18 meters by the TC35 high powered fan.

  • Cooling Capacity (KW) 9.4
  • Cooling Capacity (BTU/h) 32000
  • Digital Thermostatic Controls with 1°C increments
  • Vented or Spot cooler
  • 3 Cold Air Nozzles
  • Great for commercial applications or temporary applications
  • 2 Fan Speed Settings
  • Timer (hours) Yes
  • Condensate tray full light yes
  • Dehumidifying Capacity 65
  • Operating Temperatures: 18 - 45°C
  • Fitted Castors/wheels yes
  • Airflow volume: 1014 m3/hr
  • Washable filters: Aluminum / Vinyl chloride
  • Noise Level dB(A) 72
  • Refrigerant R410a
  • Rotary compressor
  • Energy Rating: B
  • Max power consumption (4 kw)
  • Cold air ducting: 125 mm diameter; 3 x meters hoses supplied
  • Hot air ducting diameter:  400 mm with supplied cowl
  • Maximum hot air ducting lenght: 18 meters (hot air ducting optional)
  • Voltage (V) 220 Single phase; 50 hz; 16.5 Amps (max 20 Amp)
  • Frequency (Hz)50
  • Size (W x D x H)  mm:  660 x 885 x 1380
  • Net Weight (kg) 111
  • Gross Weight (kg) 120

For maximum efficiency in cooling applications please order the plenum. Plenum ducting hose diameter is 300 mm.

Useful Information:

Download Instruction Manual

Please Note: In order cool a room, all air conditioners must be vented. This model has a 450mm hot air outlet, which should be ducted outside ( unless using the unit as a spot cooler ).  The  maximum length of the hot air duct is 10 metres.  The unit also has three cold air outlets (125mm diameter), allowing the cold air to be directed to different areas / rooms. The  cold air hoses supplied are all 0.5 metres long, but each one can be replaced with a hose of up to 10 metres minus the length of the hot air duct. i.e if your hot air duct is 4 metres, the maximum length for each of the cold air hoses would be 6 metres.
