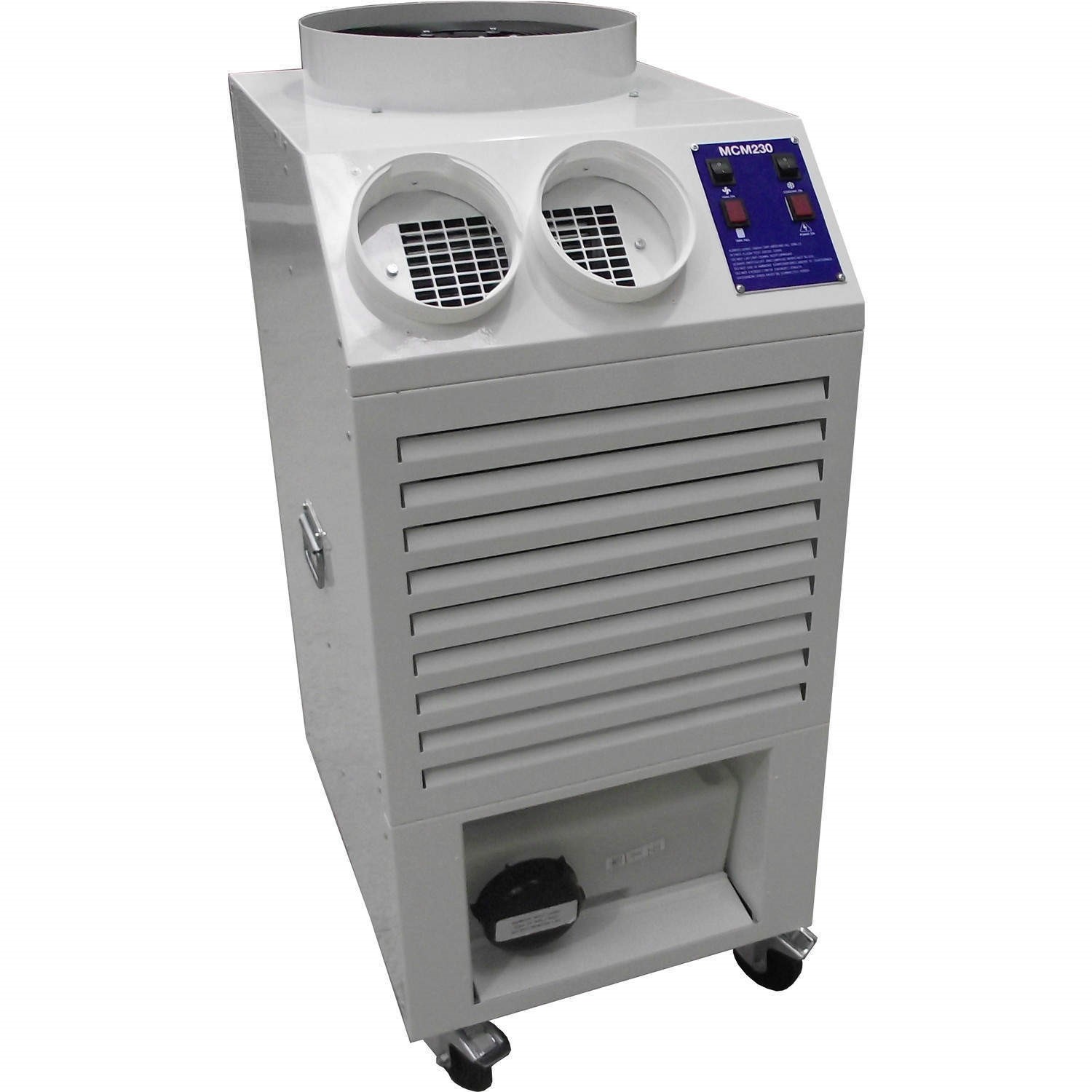

Broughton 23000 BTU Commercial Air Conditioner MCM230

Quickfind code: 494830

See all delivery & collection options

We deliver 6 days a week from 7am - 8pm, including the option of next day and Saturday delivery on 1000’s of products. We offer a range of delivery services for you to choose from, with many allowing you to choose a delivery date. Most of our delivery partners give you delivery time slots on the day of delivery and the ability to track your order. You may also have the option to collect from our Huddersfield or East Midlands stores, or from thousands of nationwide CollectPlus collection points.

Simply enter your postcode below to see your delivery options:

Enter delivery postcode for options and prices:
click to close
Why buy me
  • Manufacturer Broughton
  • Model MCM230
  • Refrigerant Green R422d
  • Rating 6.7Kw, 23,000 BTus
  • Voltage 230
  • Multi Areas Up to Two Areas Simultaneously
  • Thermostat No
  • Portability Fully portable locking castors
More Info » Tech Spec »
Valid promotions & discounts
Price match

If you have seen this product cheaper elsewhere you could take advantage of our Price Match Promise!. Give us a call on 0844 412 4540 and we will try and price match where possible! Terms & Conditions apply.

Ways to pay

Ordering from us is easy. We accept all major credit and debit cards, including Visa, MasterCard, Switch, Delta, Maestro, Solo and American Express, as well as Amazon payments and Paypal - making placing an order with us as easy and convenient as possible.

payment options

Product Information

Broughton products are a British brand you can trust, for not only engineering that lasts, but units that deliver

After 30 years experience in the industry Broughton are so confident in its products that they come with a full 2 years warranty.

The mighty cool range of heavy duty air conditioning units offers enormous versatility with rugged design and stylish looks. These easy to use units are built to cope with everything, whilst not looking out of place in the office or boardroom. The massive cooling abilities allows them to be used for spot, comfort or process cooling. If it’s a congestion of people, equipment or both these air-conditioning units quickly help to return the workspace to a comfortable level. The amazing Multi Area cooling facility means you can cool more than 1 area at a time and then vent the air via a single vent up to 20 Meters away.

Take a look at the special features including the innovative pressure control system which help to prevent nuisance freezing up.

  • Manufacturer Broughton
  • Model MCM230
  • Refrigerant Green R422d
  • Rating 6.7Kw, 23,000 BTus
  • Voltage 230
  • Multi Areas Up to Two Areas Simultaneously
  • Thermostat No
  • Portability Fully portable locking castors
  • Air Flow 1170 Cubic Meters per Hours
  • Cooling Ducting 2x150mm
  • Exhaust Ducting 300mm
  • Exhaust pipe length 3m
  • Running Current (Amps) 8.6
  • Noise 66dbA
  • Weight (Kg) 86
  • Dimensions (HxWxD) 1080x530x690 mm
  • Power Supply Standard domestic 13amp
  • Warranty 2 Years

Cooling two locations with one unit, can save on noise disruption and running costs.


Tech Spec

Detailed Information
BTU 23,000BTU
Energy Rating A
Noise level Normal
Room Size 150m²
Unit Size Large

Questions & Answers

05/05/2012 J.E.: Is this unit 50 or 60 hz?
Does the unit run on 220 (230v) or 120 (115v)?

Gavin: Hi, the unit is 230v, we have no spec indicating Hz though.


18/10/2011 Dee: What's the coolest it gos down too? My rooms in it's 100's as for the size it's 9ft high, 13ft by 12ft.. Would it sort it? Or what one would you recommend? My server room needs to be 25 to 27c for safety....

mark h: Yes we've used one of these in a sever room with slightly larger dimensions when our main units went down. Will cool to around 20 degrees c. Thanks

13/07/2011 Alan: Can you tell me the diammeter of the exhaust hose, is it possible to reduce this down if need be. Also is it possible to purchase this using a purchase order ?

mark h: The exhaust and outlet hoses on these are 8 Inches and cant be reduced. We only accept Purchas Orders from Education and Government institutions I'm afraid

16/06/2011 emmanuel: I need a specified air condition that is central for a place of worship.This will be used for the toilets,auditirium and every other place within the floor area of 490m2.This must be able to blow both heat and cool air.Please specify the correct type.height is 2.8m

mark h: For this size you would require 25,000BTU's so an MCM280 would be best. These units only will only cool, they don't heat.

11/05/2011 Mark: Is the condensate extracted via the vent hose? Being multi area how is the cool air distributed - by extra hose? If it is via hose what is the maximum length of cooling hose? What hoses are included?

mark h: Yes, however there is a also removable tank at the front of the unit that will collect water depending on the humidity levels. This unit has 2 outlets and 1 exhaust. Its comes with 2.5m of outlet and exhaust hose but extra lengths of 15m can be purchased for £89 Inc vat, this can be used for both exhaust and outlet. The maximum lengths for each would be 15m.

17/06/2010 Stewart: Please indicate physical dimensions. I'd like to place the unit in a control room to remove 6.5 kW of thermal load where space is at a premium

mark h: Dimensions (HxWxD) 1080x530x690 mm

11/06/2010 mike mckay: Can you tell me what the electrical draw is on the Broughton air con unit 23,000 btu unit please when run at maximum output?

mark h: 8.6Amps

24/05/2010 Bea: i want a unit that will cool a room 30ft by 30 ft, what unit do you recommend?

mark h: It depends on the height of the room. Please see the right hand side button which unit is right for my room. The calculator will work out the required BTU
