CD200 - 415V 3ph 50Hz

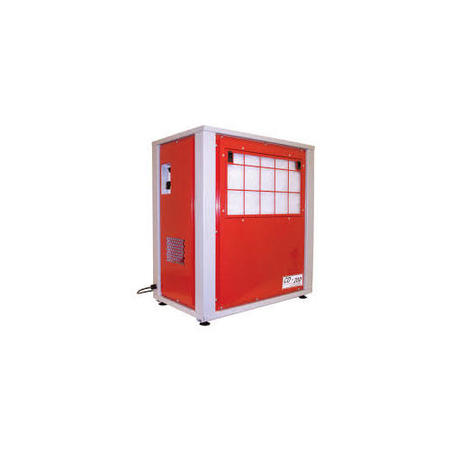

The EIPL CD200 dehumidifier has been introduced to serve the demands of medium sized areas without the need to use multiple units. Warehouses, factories, offices and other medium scale facilities with ambient temperatures ranging from 3°C to 35°C can be cured of humidity and condensation problems efficiently and automatically The CD200 unit can be utilized singly or in multiple units, to provide protection on any scale. Ducted applications are possible where design requirements specify. The CD200 incorporates EIPL's unique temperature sensitive, "Reverse Cycle" defrosting feature. This proven method of defrosting allows the unit to function smoothly in all temperatures, while maintaining optimum performance at higher temperatures. The twin speed centrifugal fan maximizes air delivery over longer distances. Under maximum conditions the CD200 will remove up to 100 lts/day. The remote humidistat feature of the CD200 makes the unit the ideal choice for where remote sensing and control is required Optional duct mounting flanges, reduces the installation time when connecting to an existing / new ducting systems.

Features

• Voltage: 415
• Phase: 3
• Frequency(Hz): 50
• Power(kW): 2.25
• Current(A): 10.6
• Airflow(m3/hr): 1500
• Noise Level(dba): 73
• Effective Volume(m3): 600
• Typical Extraction(l/d): 65
• Min Operating Temp (°C): 3
• Max OperatingTemp (°C): 35
• Height (cm): 83.2
• Width (cm): 74.5
• Depth (cm):44.5
• Weight (kg): 80
